Appearing right before your eyes!

LED panel

DEVICE

Although normally invisible, the printed areas become visible when subjected to backlighting. The color of the illuminated area can also be changed by using different colors during the printing stage.

Specifications

  • Stealth Print
  • ・You can only see the drawing/design when the LED light turned on.
  • ・You can choose the printing color of the case and just set the white LED light.

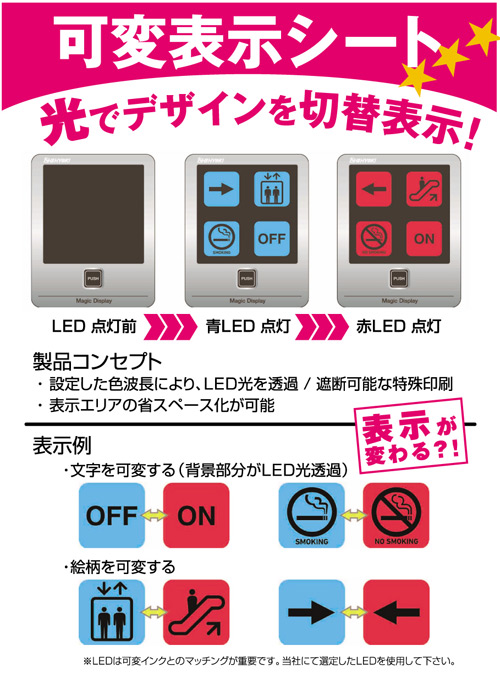

  • Variable display sheet
  • ・Special printing which is adjustable permeability/interception for LED light based on the color wavelength setting
  • ・Less space for display area

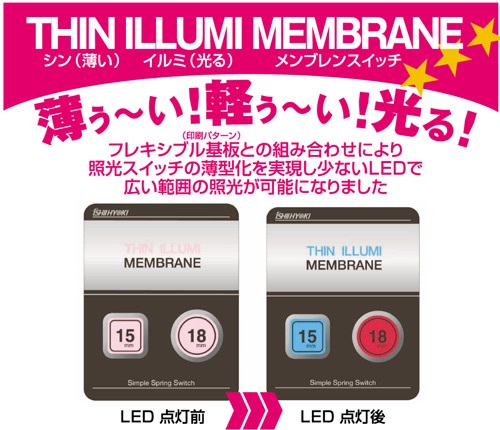

  • THIN ILLUMI MENMBRANE
  • * An illuminated switch with a total thickness of under 1.5mm
  • * Stabilized click action using metal domes
  • * Low-cost sheet-style membrane structure
  • 3 Standard LED options (red / blue / orange)
  • * Standard key size: 15m, Ф 18 mm

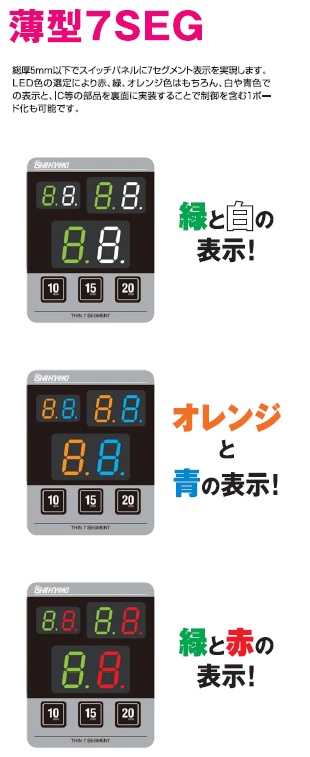

  • Thin type 7SEG
  • ・We can provide 7segments display on the switch panel with less than 5mm thickness.
  • ・The color display could be depends based on the selected color(red,green,orange,white and blue), also arrangable for only 1 port including control by implementing such a IC to the back side of parts.
