The high-end UI capabilities of our GOP series will revolutionize the world!

GOP-5000 Series H Class

DEVICE

The Graphic Operation Panel (GOP) 5000 Series H Class range is a high-end class of GOP panel with video input, sound output, and a range of other capabilities in addition to their basic functions as highly expressive display units.
In addition, they can also be installed with BURU touch systems to provide an even greater sense of control.
These panels offer new potential as HMI for use in a diverse range of fields, including FA/OA machinery, measuring equipment, medical equipment, and food industry machinery.

Product Specifications

Type number Touch panel type
GOP-5065HVTAA 6.5inch Analog type
GOP-5065HVTBA 6.5inch BURU Analog type powered by touch system
GOP-5084HVTAA 8.4inch Analog type
GOP-5084HVTBA 8.4inch BURU Analog type powered by touch system
GOP-5104HVTAA 10.4inch Analog type
GOP-5104HVTBA 10.4inch BURU Analog type powered by touch system

Common design

Liquid Crystal High Luminance/Wide-Viewing Angle TFT LCD Display (LED BL)
Resolution 640×480
No. Colors Displayed 32,768 colors
Internal Audio Source Piezobuzzer (Fixed volume, customizable audio length)
Clock Functions Included
Power Rating DC 24V±10%
Operating Temperature 0 to +50℃/10% - 85% RH (However, avoid condensation)
RoHS Directive Compatible

※1 Only can use PORT1 for BURU powered by touch system. BURU touchless could apply PORT1・2.
※2 Cannot output from internal speaker while using external audio.

Specifications

  • ■Finger sensored. Powered by BURU touch system for GUI next generation.〈only VTB〉
    You can feel the vibration to your finger while touching the touch panel.
    You can easily set the pattern for vibration on designated dispaly setting software each button.

  • ■High quality video input
    Setting the NTSC video input as standard. Adjustable design for screen and video superimpose.

  • ■Sound output
    Could play the WAV file. Also arrangable by the voice.

  • ■Using USB emmory
    ●Can use for several purpose like, saving the log activities, download settings etc..
    ●Rewrite the screen data among the field.

  • ■Adjustble screen settings for any using purpose.
    ●We can easily arrange the designated screen settings tool （TP-Designer V4）baesd on uses purposes.
    ●Layer：Maximum 3layers of screen.(can be translucent display)
    ●Effect：Set a special display for screen converting. (Fade/slide in etc)
    ●Stroke font：Smooth displayed even for a big letter
    ●Rotation display：Could adjust the screen display to 0/90/180/270 degrees.
    ●Load Chinese and Korean font.
    ※Chinese font is not the attestation font.

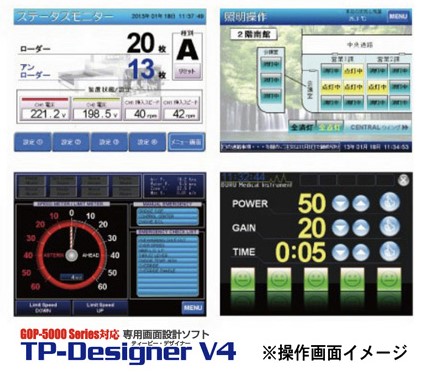

  • ■Designated screen setting software TP-Designer V4
    ●For GOP-4000/5000 series（Version4.3.0.0 or later）
    ●Arrangeable convert for each model data.
    ●Could be build design to functinal settings for GUI.
    ●Could set the movement settings for the such a button either 「movement settings by command selection」 and 「Programing by simplified language(macro) 」.
    ●You can do macro programming with your own device, just set the registration for external editor. 。
    ●Images(via BMP,JPEG and clipboard）、easily take in the sound souce data(WAV file).
    ●Arrange reading and writing of internal memory by connecting GOP
    ●Recommended system requirements:CPU 1GB or more・Memory 1GB or more Screen resolution
    ：SXGA（1280×1024）or more Number of colors
    ：Full color（260 thousands colors） Required OS:WindowsXP、Windows7,8.1,10
